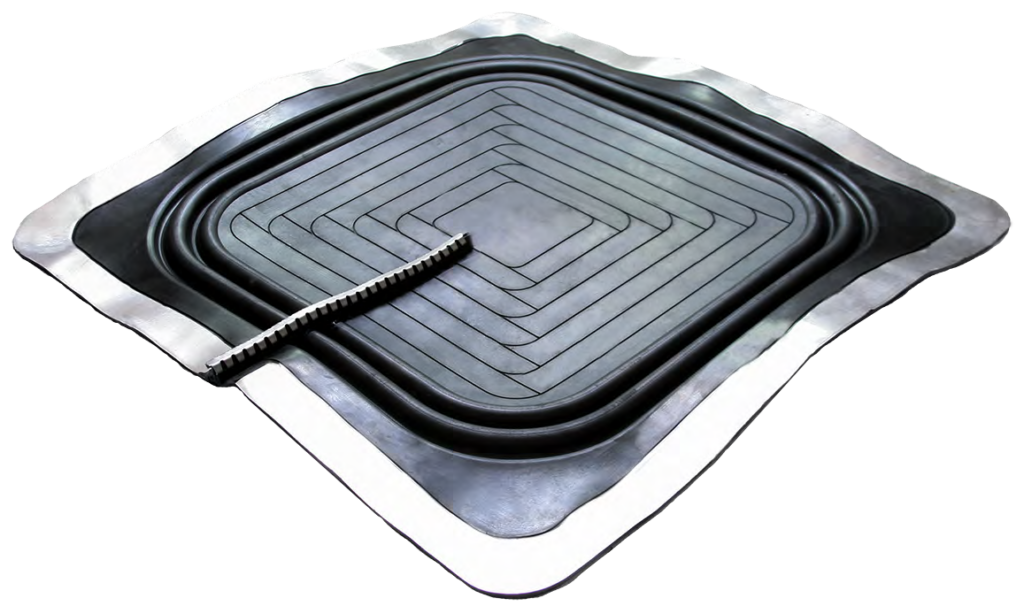

Metal Roof Multi-Flash Sealing Vent Adapter

Product Type:

• Metal Roof Vent Sealing Adapter / Pipe Flashing

Application:

• Sealing vent pipes, flues, and roof penetrations on metal roofs

• Suitable for standard or retrofit installations

Material Options:

• Black EPDM rubber

• High-temperature gray silicone

Base Construction:

• Flexible aluminum base for forming to metal roof panel profiles

Pipe Size Compatibility:

• Standard installation: 5/8 in. – 28-1/2 in. pipe diameter

• Retrofit installation: 1-1/8 in. – 28 in. pipe diameter

Available Sizes:

• Multiple sizes (#2 through #9 and Maxi) to accommodate different pipe ranges

Base Diameter Range:

• Approximately 6 in. – 34 in. base size depending on model

Temperature Resistance:

• EPDM:

  • Continuous: up to 212°F (100°C)

  • Intermittent: up to 275°F (135°C)

• Silicone:

  • Continuous: up to 437°F (225°C)

  • Intermittent: up to 500°F (260°C)

Low Temperature Resistance:

• EPDM: -67°F (-55°C)

• Silicone: -101°F (-74°C)

Weather Resistance:

• High resistance to UV, ozone, and extreme weather conditions

Installation Features:

• Multi-step cone with cut lines for custom pipe sizing

• Flexible aluminum flange conforms to roof panels

• Stainless steel gripper clamp included for retrofit installations

Roof Pitch Compatibility:

• Designed to work on most roof pitches and metal panel configurations

Warranty:

• EPDM: up to 25-year warranty

• Silicone: up to 35-year warranty
